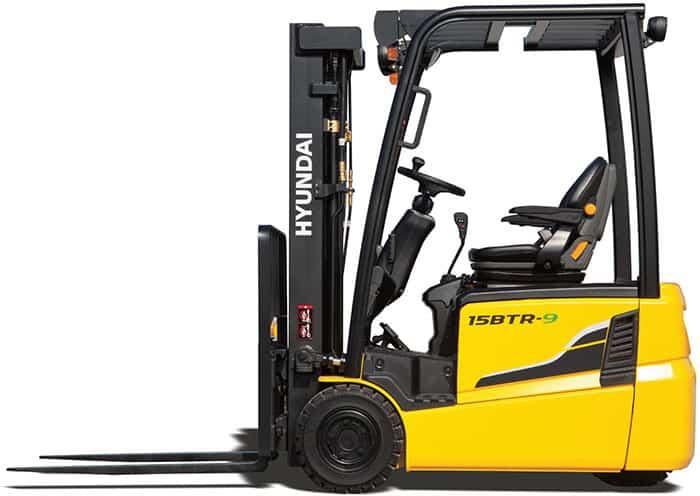

15BTR-9

Identification:

Load Capacity (lbs)

3,307

Load Center (in)

24

Dimensions:

Service Weight (lbs)

2,840

Overhead Guard Height (in)

80

Length to Face of Forks (in)

71

Overall Width (in)

39

Ground Clearance, Center of Wheelbase (in)

3.5

Turning Radius (in)

58

Wheels:

Front Tires Size

18 x 7-8

Rear Tires Size

18 x 7-8

Performance:

Travel Speed, Unloaded (mph)

8.1

Service Brake

Hydraulic

Battery Voltage (V/Ah)

24 / 750

Battery Compartment L/W/H (in)

33 / 19 / 25

Drive Control

AC

  • Mast:
    V330, V350, V370, V400, V500, VF300, VF330, VF350 TF/TS400, TF/TS430, TF/TS450, TF/TS470, TF/TS500, TF/TS550, TF/TS600
  • Fork(in):
    32 / 35 / 41 / 47 / 53 / 59
  • Overshoe(in):
    51 / 59 / 67
  • Sideshift
  • Integral Sideshift
  • Tilting:
    5° / 6° , 5° / 5°
  • Tire:
    Non-marking
  • Finger Tip Control
  • Cold Storage
  • M.C.V:
    4-Spool
  • Attach Piping:
    3 Spool-piping, 4 Spool-piping
  • Beacon Lamp
  • Work Lamp
  • OPSS:
    Travel + Mast
