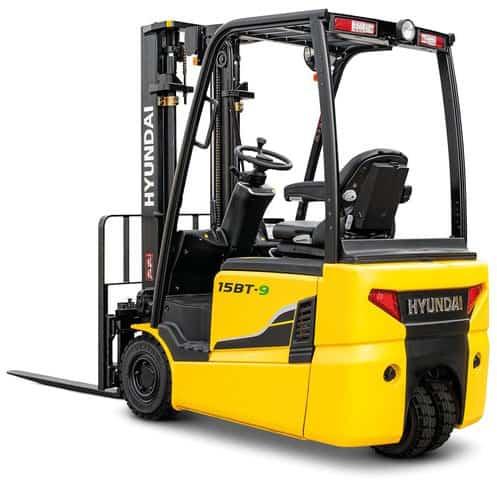

15BT-9

Identification:

Load Capacity (lbs)

3,000

Load Center (in)

24

Dimensions:

Service Weight (lbs)

6,889

Overhead Guard Height (in)

81

Length to Face of Forks (in)

74

Overall Width (in)

42

Ground Clearance, Center of Wheelbase (in)

3.5

Turning Radius (in)

61

Wheels:

Front Tires Size

18 x 7-8

Rear Tires Size

15 x 4.5-8

Performance:

Travel Speed, Unloaded (mph)

10.6

Service Brake

Hydraulic

Battery Voltage (V/Ah)

36 / 48

Battery Compartment L/W/H (in)

39 / 22 / 25

Drive Control

AC

  • Fork (in):
    1.4X3.9X30, 33, 35(STD), 41, 47, 53, 59
  • Overshoe (in):
    51 / 59 / 67
  • Integral Sideshift
  • Tire:
    SOLID (STD) / Non-marking / Cushion tire / Wide tire [Front tire (200 / 50-10)]
  • Seat:
    Grammer
  • Finger Tip Control
  • Cold Storage
  • M.C.V:
    2-Spool (STD), 3-Spool, 4-Spool
  • Auto Fork Leveling
  • Beacon Lamp
  • Load Indicator
  • Work Lamp
  • OPSS:
    Mast
  • UL:
    ES, EE
  • Cabin
