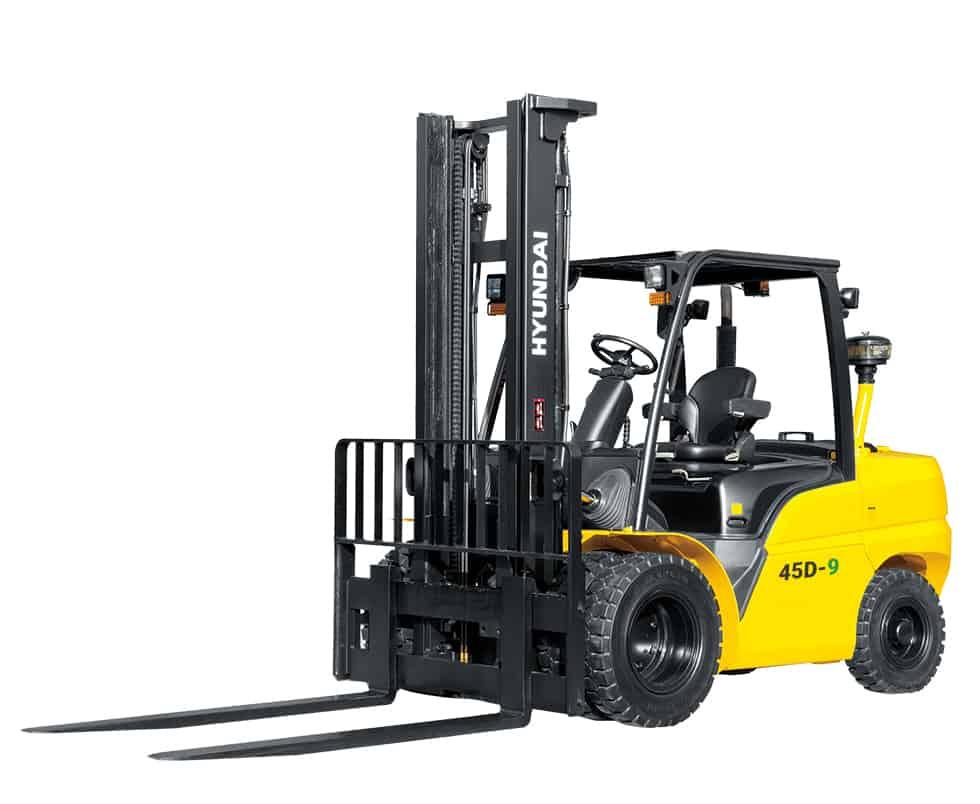

45D-9

Identification:

Load Capacity (lbs)

9,900

Load Center (in)

24

Dimensions:

Service Weight (lbs)

15,212

Overhead Guard Height (in)

87

Length to Face of Forks (in)

127

Overall Width (in)

69

Ground Clearance, Center of Wheelbase (in)

7.3

Turning Radius (in)

118

Wheels:

Front Tires Size

7.50 x 16-12PR

Rear Tires Size

7.00 x 12-14PR

Performance:

Travel Speed, Unloaded (mph)

15.9

Engine Manufacturer

CUMMINS QSF3.8

Engine Horse Power

101

Number of Cylinders/Cubic Capacity

4/3,726

Service Brake

FOOT

Drive Control

PowerShift

  • Fork (in) 45D-9: 42, 48 (standard), 54, 60, 66, 72, 78, 83, 94
  • Overshoe (in) 30D-9: 63, 71, 79 40/45D-9: 71, 79, 87 50DA-9: 71, 79, 87, 91
  • Integral sideshift, fork positioner, sideshift, INT, SS with FP for single tire
  • Tire: Solid (superelastic) / non-marking / front single / double tire
  • M.C.V: 3-spool, 4-spool, 5-spool
  • Seat: Armrest, Heat, Backrest Ext, Buckle SW
  • Load weight indicator
  • Auto fork leveling system
  • Rear-view camera
  • Cabin (heater and air conditioner)
  • Hydraulic pump temperature / pressure monitor
  • Battery disconnect switch (master switch)
  • Beacon lamp (LED) (amber, red, blue)
  • Rear work lamp or LED rear work lamp
  • F-N-R and horn knob switch
  • Rear horn
  • LED work lamp
  • Overhead guard (height: 92 inches / 2340 mm)
  • OPPS (Travel, Travel Mast)
