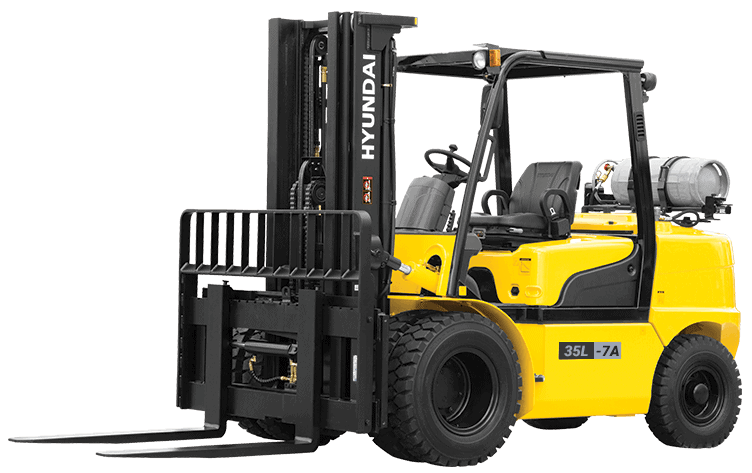

35L-7A

Identification:

Load Capacity (kg)

5,000

Load Center (mm)

600

Dimensions:

Service Weight (kg)

7,043

Overhead Guard Height (mm)

2,240

Length to Face of Forks (mm)

3,235

Overall Width (mm)

1,740

Ground Clearance, Center of Wheelbase (mm)

200

Turning Radius (mm)

2,947

Wheels:

Front Tires Size

7.50 x 16 x 12pr

Rear Tires Size

7.00 x 12 x 14pr

Performance:

Travel Speed, Unloaded (km/h)

22.8

Engine Manufacturer

GM 4.3L

Engine Horse Power

70

Number of Cylinders/Cubic Capacity

6/4,294

Service Brake

Hydraulic

  • CABIN
  • SIDE SHIFT
  • INTEGRAL FORK POSITIONER
  • FORK:
    54 in, 60 in, 66 in, 72 in, 77 in
  • OVER SHOE:
    71 in, 79 in, 87 in
  • TILTING:
    8/6, 8/8
  • TIRE:
    Cushion, No-marking, Double
  • SEAT:
    Pocket, Arm Rest, Hip Rest
  • LPG CLAMP:
    Swing Out
  • M.C.V:
    4-Spool
  • ATTACH PIPING:
    3 Spool-piping, 4 Spool-piping
  • MASTER SWITCH
  • BEACON LAMP
  • HAZARD SWITCH
  • BRAKE PEDAL
    Hydraulic Booster (w/o Accumulator)
